20,736 possible angles
Get access to every part feature

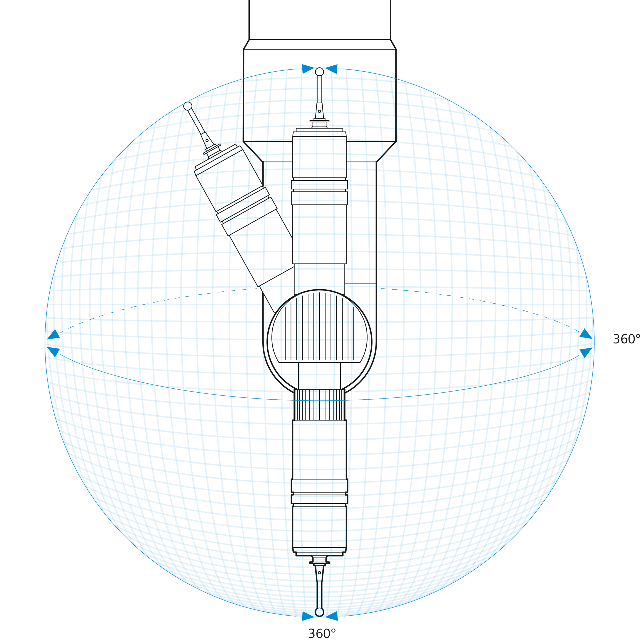

The ZEISS RDS articulating probe holder is particularly well-suited for measuring complex parts, where features require many styli with different spatial directions. It reaches up to 20,736 positions in 2.5-degree increments – thus providing access to every part feature. This is made possible by the horizontally and perpendicularly arranged rotary axes with rotational ranges of plus/minus 180 degrees.
Optimize your process
Decrease calibration time
Furthermore, the RDS-CAA for touch-trigger and measuring sensors leads to shorter calibration times: only a few spatial angular positions require calibration. During programming, the RDS can be easily positioned using the joystick on the control panel to enable shorter programming times. Designs are available for machines in standard, compact and multisensor configurations.
